Model No.: EWN12000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

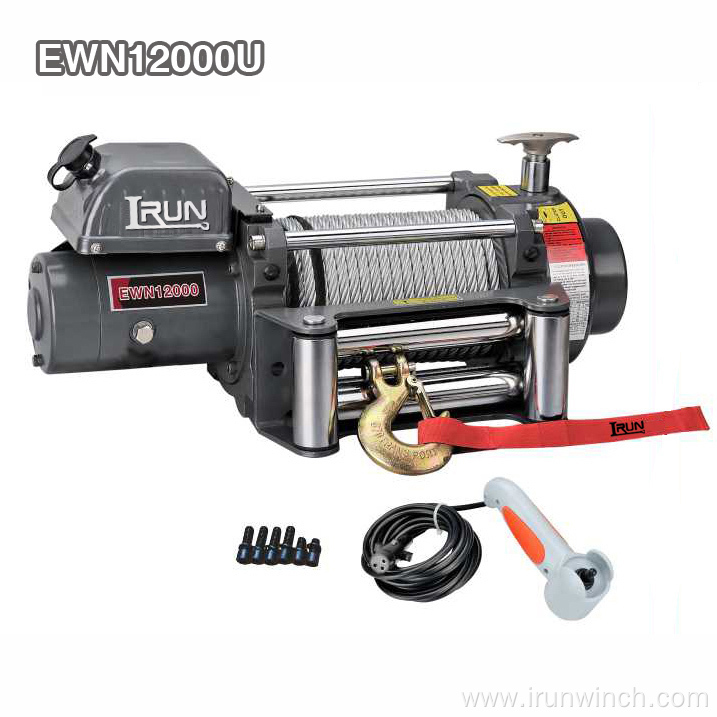

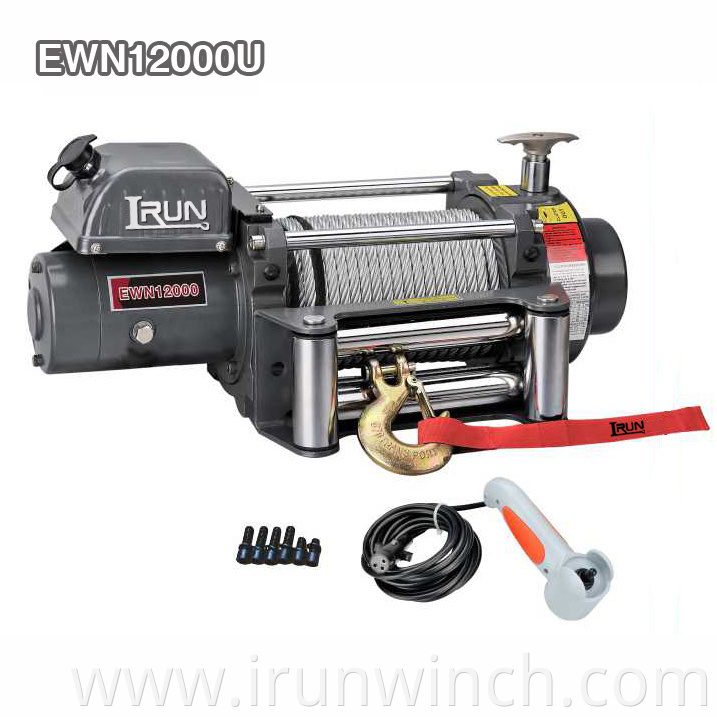

Heavy Duty Electric Winch 12000 lb Item No.EWN12000U
Heavy Duty Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our EWX Series.They’re widely applied for severe offroad or engineering use.
Heavy Duty Electric Recovery Winch Item No. EWN12000U Winching Capacity of up to 12000lbs comes alone with a control box, a wire rope with hook,a roller failread accessories.
The heavy duty design specially on automatic screw cone, patent hardened steel three stage planetary gear reducer provides a safer opeation and higher efficient transmission of Recovery Winch.
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
EWN12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.1kW /2.8hp 24V:Input: 5.3kW / 7.1hp;Output: 2.5 kW /3.4hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 18.4(5.6) | |
| 0 | 16.4(5.0) | 17.7(5.4) | 80 | 40 | 2 | 9800(4445) | 41.0(12.5) |
| 6000(2722) | 7.54(2.3) | 7.9(2.4) | 260 | 110 | 3 | 8300(3765) | 65.6(20.0) |
| 8000(3629) | 6.4(1.95) | 6.6(2.0) | 310 | 145 | 4 | 7200(3266) | 83.7(25.5) |
| 10000(4536) | 5.74(1.75) | 5.9(1.8) | 380 | 185 | |||
| 12000(5443) | 4.76(1.45) | 5.6(1.7) | 450 | 220 | |||
| ITEM | EWN12000U | EWN12000S | |
| Overall dimensions | 22.6″×8.1″×9.7″ 573mm×206mm×246mm | 22.6″×8.1″×11.8″ 573mm×206mm×299mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 132.3 61 | 132.4 61.3 | |
| (kgs) |
Overall Dimensions 22.6″ x 8.1″ x 9.7″
(L x W x H) 573mm x 206mm x 246mm
Net Weight 61 KGS
