Model No.: EWN10000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

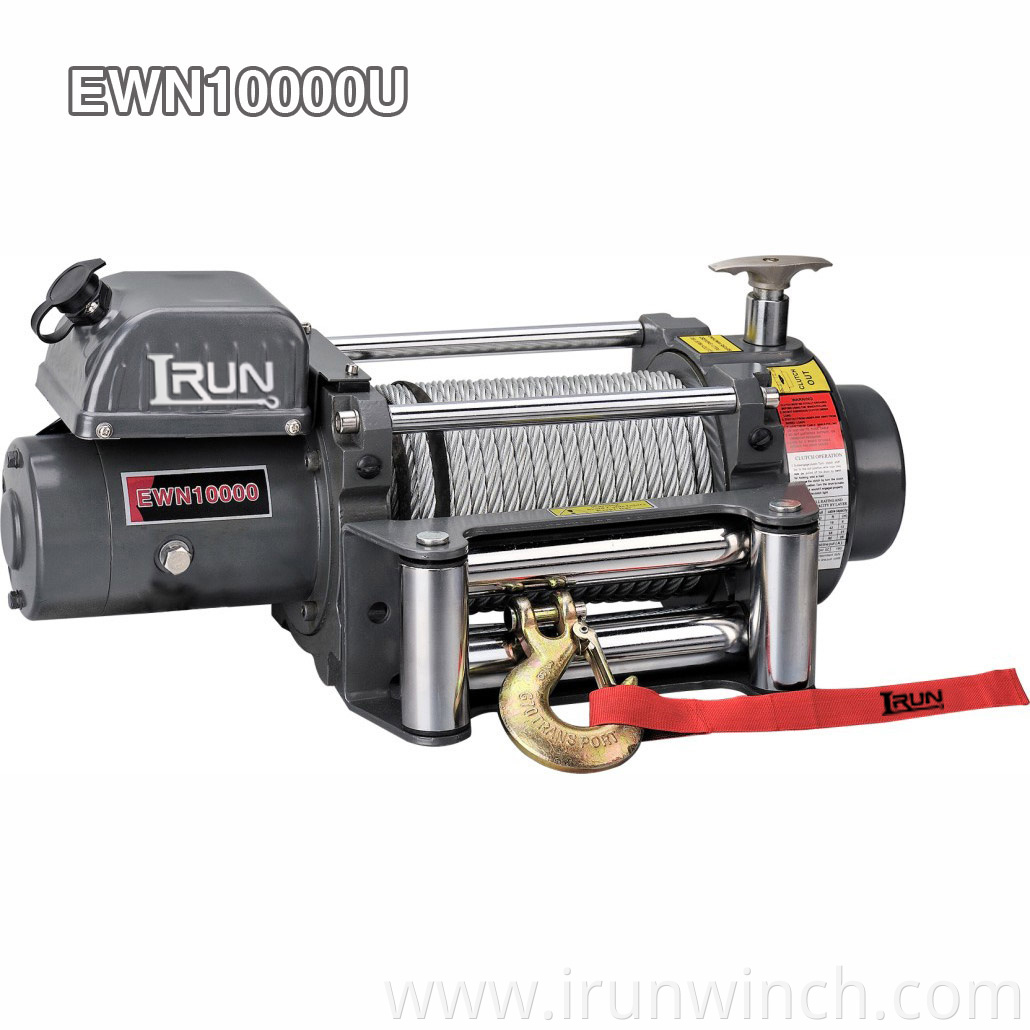

EWN10000U
Heavy Duty Electric Recovery Winch Item No. EWN10000U Winching Capacity of up to 10000lbs
Each winch come along with a control box installed on winch Motor, a wire rope with hook,a roller failread.
This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.
Heavy Duty Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our Winch EWX Series.They’re widely applied for the severe offroad or engineering use.
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet | 12V:Input: 4.0kW / 5.3hp;Output: 1.9 kW /2.5hp 24V:Input: 4.9kW /6.6hp;Output: 2.4 kW /3.2hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø3/8″×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.8 “×8. 6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.4(5.6) | |
| 0 | 15.7(4.8) | 14.8(4.5) | 80 | 40 | 2 | 8000(3629) | 41.3(12.6) |
| 3000(1361) | 9.2(2.8) | 9.5(2.9) | 160 | 70 | 3 | 6700(3039) | 65.6(20.0) |
| 6000(2722) | 6.6(2.0) | 7.2(2.2) | 225 | 100 | 4 | 5747(2607) | 85.3(26.0) |
| 8000(3629) | 5.6(1.7) | 6.1(1.85) | 300 | 120 | |||
| 10000(4536) | 4.6(1.4) | 5.4(1.65) | 330 | 206 | |||
| ITEM | EWN10000U | EWN10000S | |
| Overall dimensions | 22.2″×8.1″×9.7″ 563mm×206mm×246mm | 22.2″×8.1″×11.8″ 563mm×206mm×299mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 128.5 58.3 | 129.4 58.7 | |
| (kgs) |
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
Overall Dimensions 22.2″ x 8.1″ x 9.7″
(L x W x H) 563mm x 206mm x 246mm
Net Weight 58.3 KGS
