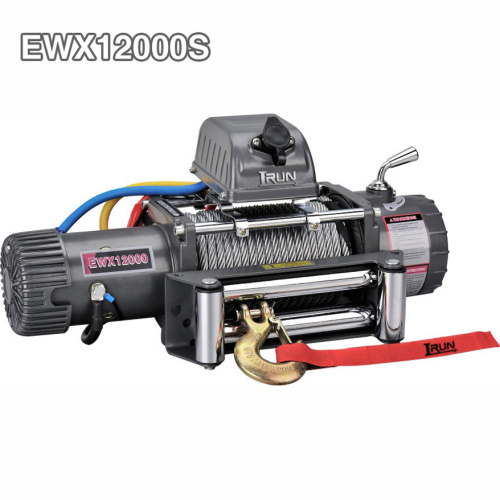

Model No.: EWX12000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Offroad Winches are essential companions for off-road enthusiasts to break through difficult situations, while Recovery Winches are the key force for emergency rescue. And the brand-new EWX12000S 12000 lbs Electric Trailer Winch redefines the efficiency and reliability of winches with outstanding performance!
The EWX12000S electric trailer Winch, as a star product of the Recovery Winch EWX series, combines high efficiency, stable towing and compact design. With a powerful pulling force of 12,000 pounds and a patented three-stage planetary gear reducer, it can quickly complete rescue tasks whether it is a trailer deeply Mired in mud or a vehicle trapped in the wilderness, perfectly interpreting the professional rescue attributes of Recovery Winches. Compared with the complex Hydraulic system of Hydraulic Winches, it achieves convenient operation and simple maintenance through electric drive. Meanwhile, drawing on the durable essence of Industrial Winches, high-strength materials and precise construction ensure long-term stable operation.
Its compact design, combined with the control box installed on the Winch rod, does not occupy too much space but can provide ultimate transmission efficiency and a safe and reliable operation experience. It is an excellent choice for 12,000-pound off-road Winch. In addition, the Winch Accessories such as roller cable guides and high-strength steel wires ensure the smooth progress of rescue operations in every detail. Whether exploring unknown off-road sections with Offroad Winches or cooperating with Hydraulic 4wd Winches to deal with harsh road conditions, the EWX12000S can stand out with its stable performance and efficient rescue capabilities, becoming a trusted choice in towing, off-road and rescue scenarios!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |
Overall Dimensions：22.8″ x 6.3″ x 10.7″
(L x W x H) 579mm x 160mm x 272mm
Net Weight：42.3 KGS
