Model No.: I-EWN10000S
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Auto
Voltage: 24v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
12V or 24V Electric Industrial Winches 10000lb

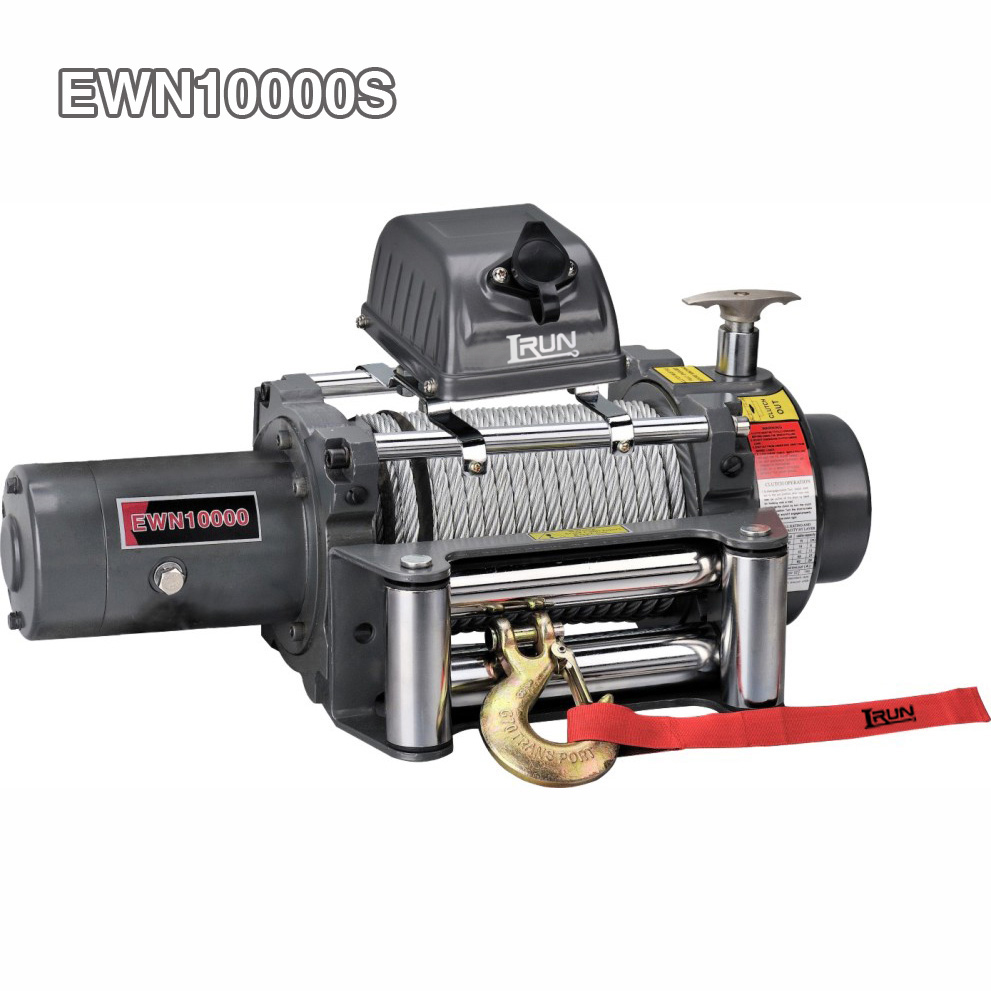

12V or 24V Electric Industrial Winch Item No. EWN10000S Winching Capacity of up to 10000lbs
Which comes along with a seperated control box on winch tie bar, a wire rope with hook and a roller failread
We made the heavy duty concept design in order to meet some clients’ need of severe offroad or engineering use.
Heavy Duty Industrial Electric Winch EWN Series have a more durable working life, powerful motor, faster line speed and better efficient transmission merits.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. Series Wound Motor
4. Patent design tree stage planetary gear reducer
5. Specially designed shape for convenience of installation and good looking
6. Remote control through control box and switch
7. Wireless remote control available
8. DC 12V or DC 24V Power drive optional
9. SWR tensioner available
EWN10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet | 12V:Input: 4.0kW / 5.3hp;Output: 1.9 kW /2.5hp 24V:Input: 4.9kW /6.6hp;Output: 2.4 kW /3.2hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø3/8″×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.8 “×8. 6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.4(5.6) | |
| 0 | 15.7(4.8) | 14.8(4.5) | 80 | 40 | 2 | 8000(3629) | 41.3(12.6) |
| 3000(1361) | 9.2(2.8) | 9.5(2.9) | 160 | 70 | 3 | 6700(3039) | 65.6(20.0) |
| 6000(2722) | 6.6(2.0) | 7.2(2.2) | 225 | 100 | 4 | 5747(2607) | 85.3(26.0) |
| 8000(3629) | 5.6(1.7) | 6.1(1.85) | 300 | 120 | |||
| 10000(4536) | 4.6(1.4) | 5.4(1.65) | 330 | 206 | |||
| ITEM | EWN10000U | EWN10000S | |
| Overall dimensions | 22.2″×8.1″×9.7″ 563mm×206mm×246mm | 22.2″×8.1″×11.8″ 563mm×206mm×299mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 128.5 58.3 | 129.4 58.7 | |
| (kgs) |
Overall Dimensions 22.2″ x 8.1″ x 11.8″
(L x W x H) 563mm x 206mm x 299mm
Net Weight 58.7 KGS
